How to Measure Bike Frame Size

Choosing the right bike frame size ensures comfort, control, and performance during cycling. How to Measure Bike Frame is essential knowledge for every cyclist. The bike frame size, also known as frame height, refers to the geometry of the bike’s frame and determines how well the bike fits your body. By understanding How to Measure Bike Frame Size, you can find the right bike that enhances your riding experience. This guide will walk you through the steps to measure and choose the perfect bike frame size for you.

How to Measure Bike Frame Size

Choosing the right bike frame size ensures comfort, control, and performance during cycling. The bike frame size, also known as frame height, refers to the geometry of the bike’s frame and determines how well the bike fits your body. A properly sized frame can enhance your cycling efficiency, reduce the risk of injury, and provide greater comfort. Selecting the right bike frame involves considering several factors, such as the rider’s height, body proportions, cycling posture, and personal needs.

How to Measure Bike Frame Size involves considering several key measurements to ensure the frame matches your body’s dimensions. Each rider has a unique body shape, which can include variations in leg length, torso length, and arm span, making it essential to select the correct size for optimal comfort and performance. The geometry of a bike affects its handling and overall fit, so understanding these measurements is crucial for determining the best bike frame for your needs.

Tools Needed to Measure a Bike Frame

To accurately measure a bike frame size, you will need the following tools:

Tape measure or ruler: For taking precise measurements of various parts of the bike frame.
Level: To ensure accurate measurements, especially when determining horizontal lengths.
Inseam measuring tool (e.g., a book or similar object): Used to measure your inseam length, which is crucial for determining the correct frame size.
Protractor: For measuring angles such as the seat tube angle and head tube angle.

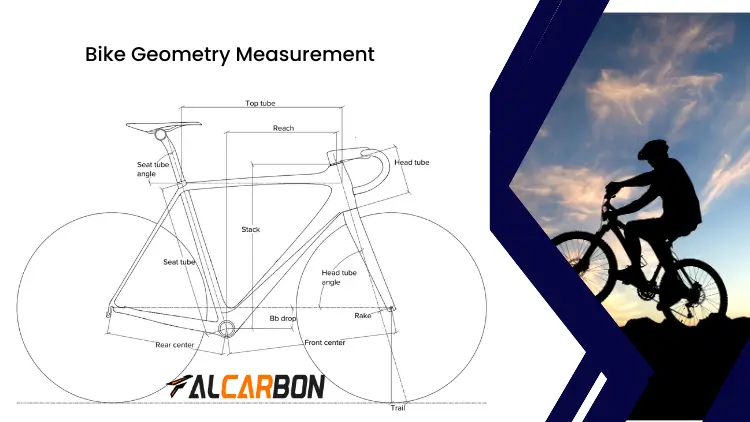

Bike Geometry Measurement

The geometry of a bike includes several key parameters, each influencing the riding experience. Understanding these parameters and how to measure them is vital for choosing the bike frame that best fits your body. Below are some of the most common bike geometry parameters:

Seat tube length: The distance between the center of the bottom bracket and the top of the seat tube.
Top tube length: The horizontal distance between the centerline of the head tube and the seat post.
Seat tube angle: The angle of the seat tube relative to the ground.
Head tube angle: The angle of the head tube relative to the ground.
Reach: The horizontal distance from the bottom bracket to the top of the head tube.
Stack: The vertical distance from the bottom bracket to the top of the head tube.
Wheelbase: The distance between the front and rear axles.
Front center: The distance from the bottom bracket to the front axle.
Chainstay length: The distance between the bottom bracket and the rear chainstay.
Bottom bracket drop: The height difference between the wheel axles and the crank axle.
Bottom bracket height: The distance from the ground to the bottom bracket.

1. Seat Tube Length

This is the straight-line distance from the bottom bracket’s center to the seat tube’s top. Seat tube length affects your saddle height and riding posture. A longer seat tube will make the rider feel uncomfortable, while a shorter one can result in poor posture, affecting power transfer.

2. Top Tube Length

The top tube length is the horizontal distance between the centerline of the head tube and the seat tube. This length affects the reach of the bike, determining how far forward or upright the rider’s body will be positioned. A longer top tube will cause a more aggressive, forward-leaning posture, while a shorter one can lead to a more upright and comfortable position.

3. Seat Tube Angle

The seat tube angle is the angle between the seat tube and the ground. This angle directly influences the rider’s posture and comfort. A steeper seat tube angle puts the rider in a more forward-leaning position, suitable for performance riding, while a more relaxed angle ensures a comfortable, upright position for longer rides.

4. Head Tube Angle

The head tube angle is the angle between the head tube and the ground. This angle affects the bike’s handling characteristics. A steeper head tube angle results in sharper, more responsive steering, suitable for mountain bikes, while a slacker angle provides more stability, ideal for long-distance or touring bikes.

5. Reach

Reach refers to the horizontal distance from the bottom bracket to the top of the head tube. It determines how far forward the rider will be positioned, affecting the overall riding posture. An ideal reach will ensure a natural, comfortable riding position without straining the back and shoulders.

6. Stack

Stack is the vertical distance from the bottom bracket to the top of the head tube. Stack height influences the rider’s upright posture on the bike. A higher stack allows for a more relaxed, upright position, suitable for endurance riding, while a lower stack promotes a more aggressive, aerodynamic posture, often preferred for competitive cycling.

7. Wheelbase

The wheelbase is the distance between the front and rear axles. A longer wheelbase provides more stability at high speeds, making the bike more comfortable for long-distance rides, while a shorter wheelbase increases agility and responsiveness, ideal for mountain bikes and tight corners.

8. Front Centre

The front center refers to the distance from the bottom bracket to the front axle. This measurement impacts the bike’s handling and stability. A longer front center makes the bike more stable, while a shorter front center improves maneuverability.

9. Chainstay Length

Chainstay length is the distance from the bottom bracket to the rear axle. A longer chainstay length enhances stability at high speeds, whereas a shorter length increases agility, making it better for mountain bikes that require quick turns and handling.

10. Bottom Bracket Drop

The bottom bracket drop is the vertical distance between the wheel axles and the bottom bracket spindle. A lower bottom bracket drop lowers the center of gravity, improving stability, while a higher drop may affect the bike’s handling, particularly in turns.

11. Bottom Bracket Height

This is the distance from the ground to the bottom bracket. Proper bottom bracket height ensures that your pedals won’t scrape the ground when cycling, especially on uneven terrain.

How to Find the Right Bike Frame Size

Finding the right bike frame size ensures comfort, efficiency, and safety during cycling. Since each person has different body proportions, and riding styles, and different brands offer varying frame geometries, there is no one-size-fits-all answer for determining the perfect frame size. To find the most suitable bike frame size, follow these steps for measurement and adjustment.

1. How do I measure inseam length?

Inseam length is the foundation for determining the correct bike frame size. The steps for measuring inseam length are as follows:

Remove your shoes and stand straight with your back against a wall, feet about shoulder-width apart.
Take a book (spirit level) and place it firmly between your legs, pushing it up against your crotch as if sitting on a saddle. Make sure the book is level and flat against the wall.
Using a tape measure, measure the distance from the floor to the top of the book’s spine. Make sure the tape measure is straight and vertically. The number you get is your inseam length.

2. Using Inseam Length to Calculate Bike Frame Size

You can use your inseam length to estimate the appropriate bike frame size for different types of bicycles:

2.1 Measure Mountain Bike Frame Size

To determine the mountain bike frame size, multiply your inseam length (in centimeters) by 0.225. The result will give you the seat tube length, usually measured in inches. This is the standard unit for mountain bike frame sizes.

For example:

Inseam length: 84 cm
Calculation: 84 cm × 0.225 = 18.9 inches

So, the recommended mountain bike frame size would be approximately 19 inches.

2.2 Measure Road Bike Frame Size

For road bikes, you can calculate the frame size by multiplying your inseam length (in centimeters) by 0.665. The result will give you the seat tube length, typically measured in centimeters, which is the standard for road bike frame sizing.

For example:

Inseam length: 84 cm
Calculation: 84 cm × 0.665 = 55.86 cm

So, the recommended road bike frame size would be approximately 56 cm.

3. How to Measure Reach and Stack for a Bike Frame

Reach and stack are key measurements for determining bike frame size. Unlike seat tube length, they remain consistent across different brands and frame designs. Reach measures the horizontal distance that affects your riding posture, while stack measures the vertical distance. Together, they help ensure a comfortable and efficient riding position.

how-to-measure-reach-and-stack-for-a-bike-frame-1

how-to-measure-reach-and-stack-for-a-bike-frame-0

Reach is the horizontal distance from the bottom bracket center to the head tube top. It directly influences how much the rider leans forward while cycling. A frame with a longer reach generally results in a more forward-leaning position, making it ideal for competitive and high-speed riding. A shorter reach, on the other hand, provides a more upright and comfortable posture, suitable for casual rides.

Stack is the vertical distance from the bottom bracket center to the head tube top. It determines the rider’s level of uprightness. Frames with a higher stack tend to keep the rider in a more upright position, which is ideal for long-distance or leisure rides. A lower stack, however, promotes a more aggressive and sporty riding posture, making it suitable for competitive cycling or road races.

When measuring, ensure that the bike is upright and use accurate tools. Verify the measurements multiple times to ensure precision. By correctly measuring the reach and stack, you can better assess whether a frame fits your riding posture.

4 Adjusting the Saddle and Handlebars

Even with the correct bike frame size, adjusting the saddle and handlebars is essential for maximizing comfort and performance. The saddle height should allow for a slight bend in your knees during pedaling, which helps maintain a natural and efficient riding posture. Ensuring your arms remain comfortably extended without straining is equally important.

For optimal saddle adjustment, you’ll want to ensure the right saddle width and shape that fits your sit bones. How to Measure Sit Bones for Bike Saddle can help determine the correct saddle width for your body type. For mountain bikers, understanding How to Measure MTB Saddle Size ensures you choose a saddle that offers comfort for rougher terrain. Additionally, adjusting your saddle height is vital for reducing strain and enhancing pedaling efficiency. How to Adjust Bicycle Saddle Height is a critical factor in preventing discomfort and improving cycling performance.

Related article

The position of the handlebars also greatly influences your riding experience. For instance, the handlebar height can affect your posture, so it’s essential to adjust it according to your riding style. For casual riders, a higher handlebar may provide a more upright and comfortable position, while competitive riders may prefer a lower handlebar for a more aerodynamic posture. If you’re unsure about your handlebar adjustments, you can refer to guides like How to Measure Bike Handlebar Sizes, How to Adjust Bike Handlebar Height, and How to Measure Bike Handlebar Width to ensure the correct fit.

Related article

5 Test Ride

Since there is no one-size-fits-all answer for the ideal bike frame size, the best method is to test-ride the bike in-store. Different brands and models have varying frame geometries, and test riding will help you find the most suitable frame size and riding posture. Additionally, small adjustments based on your body proportions (such as arm and leg lengths) can ensure you achieve the best comfort and efficiency during actual rides.

Bike Frame Size Guide

In the following sections, we provide size charts for road bikes, mountain bikes, and Children’s Bike Frame it is important to note that no single-size chart applies to all brands or models. The sizes may vary between different bike manufacturers, so these size charts are for reference purposes only.

Road Bike Frame Size

Height (Centimetres & Feet)	Inside Leg	Road Bike Frame Size (CM)
152cm / 5′.0″	71cm / 28″	48cm (XX Small)
160cm / 5′.3″	75cm / 29.5″	51cm (Small)
170cm / 5′.7″	79cm / 31″	54cm (Medium)
175cm / 5′.9″	83cm / 32.5″	56cm (Large)
180cm / 5′.11″	85cm / 33.5″	57cm (X Large)
188cm / 6′.2″	89cm / 35″	60cm (XX Large)
196cm / 6′.5″	93cm / 36.5″	63cm (XXX Large)

Mountain Bike Frame Size

Height (Centimetres & Feet)	Inside Leg	Mountain Bike Frame Size (Inches)
152cm / 5′.0″	71cm / 28″	15″ (X Small)
160cm / 5′.3″	75cm / 29.5″	16″ (Small)
170cm / 5′.7″	79cm / 31″	17″ (Medium)
175cm / 5′.9″	83cm / 32.5″	18″ (Medium)
180cm / 5′.11″	85cm / 33.5″	19″ (Large)
188cm / 6′.2″	89cm / 35″	20″ (Large)
196cm / 6′.5″	93cm / 36.5″	21″ (X Large)

Children’s Bike Frame Size

Unlike adult bikes, children’s bike sizes are determined by the size of the wheels rather than the frame. There is no need for precise calculations as with adult bikes. Instead, wheel size is used as the main factor, and it corresponds directly to the child’s height. As children grow, they transition to bikes with larger wheels to ensure a comfortable and safe riding experience. Proper sizing ensures that the child can easily reach the ground and control the bike with confidence.

Height (cm)	Age (Years)	Wheel Size Bikes (Inches)
88 – 97	First Bike	9″ – 10″ Bikes + Balance
98 – 104	3 – 5	10″ – 12″ Bikes
105 – 111	4 – 6	12″ – 14″ Bikes
112 – 116	5 – 7	14″ – 16″ Bikes
117 – 126	6 – 9	16″ – 20″ Bikes
127 – 135	8 – 11	20″ – 24″ Bikes
136 – 144	9 – 12	24″ – 26″ Bikes
145 – 154	9 – 12+	26″ Bikes

Learn more about bicycle wheels:

FAQ

What does a 20-inch bike mean?

A 20-inch bike refers to the diameter of the wheels. This size is commonly used for children’s bikes, typically for kids aged 6 to 10, depending on their height and skill level. It is also a standard size for BMX bikes, which are designed for tricks and racing. Additionally, some foldable bikes use 20-inch wheels, as they offer compactness and ease of storage. The smaller wheel size makes the bike more agile and manageable, ideal for younger riders or activities requiring quick maneuverability.

What size frame do I need if I’m in between sizes?

If you’re between two frame sizes, the first thing to consider is your riding needs and preferences. If you prefer agility and quick handling, opting for the smaller frame is a good choice. A smaller frame typically provides a shorter reach to the handlebars, making the ride more responsive. If you prioritize comfort and stability, especially for long rides, the larger frame might be better, offering more room to stretch out. Test riding is also a great option as it helps you determine which size feels more comfortable. Additionally, you can further fine-tune comfort by adjusting the saddle height and handlebar position.

How are bikes sized?

Adult bikes are sized by frame, measured from the center of the crank axle to the top of the seat tube. Road bikes are measured in centimeters (cm), while mountain bikes use inches (in).
Kids’ bikes are sized by wheel diameter. Smaller wheels make the bike lighter and easier to handle for younger children but can become cramped as they grow. Kids’ bikes range from 12-inch balance bikes to 24 or 26-inch junior bikes.

Final Thought

Choosing the right bike is not just about finding the correct frame size; it also involves considering factors like your body proportions, riding style, and comfort needs. If you’re unsure how to measure bike frame, start by accurately measuring your inseam and use this to calculate the ideal frame size for different types of bikes (road, mountain, or hybrid). Additionally, pay attention to bike geometry parameters like reach and stack, as they directly impact your riding posture and comfort.

Finally, a test ride is essential before making a purchase. Different brands and models have varying geometries, and a test ride will help you find the bike that best fits your body and riding style. With proper measurement and adjustments, you can ensure your bike is both comfortable and efficient.
